Translation bundles

The DatAscend application handles translation by using i18n bundles. The main way to manage these translation bundles is through the DatAscend Studio. By using the resource configuration endpoints (available on Swagger UI), users can interact with these bundles.

Managing translation bundles for entities via the DatAscend Studio

The following steps describe how an operator manages entity translation bundles in DatAscend Studio:

Bundle Creation

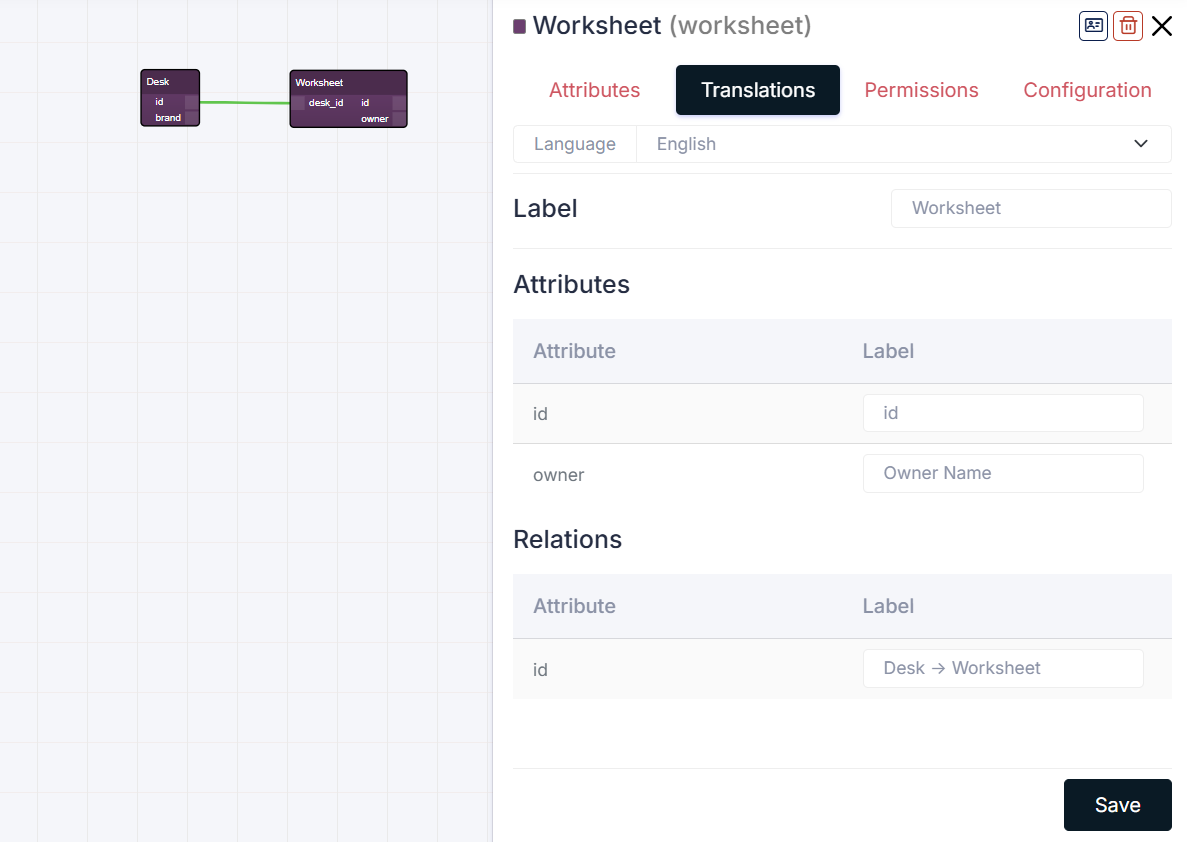

If the entity does not have a bundle created, when it is created, a new generic bundle will be generated automatically. The operator should open the Translations tab to view and manage the translation bundles in the entity drawer.

Select the Language

At the top of the Translations tab, the Language dropdown menu is available. The operator should click on it and choose the language to translate the entity into.

Translate the Main Label

The Label field is for the entity’s main name (e.g., “Worksheet”). The operator should change the text in this field to the correct translation for the chosen language.

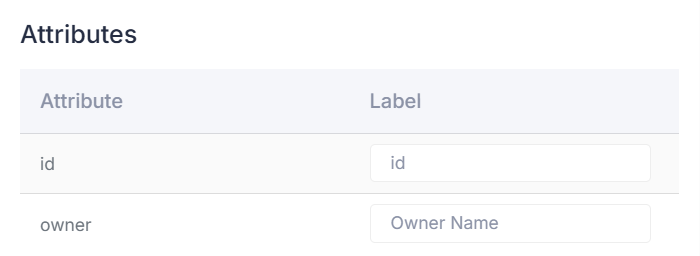

Translate the Attributes

In the Attributes section, for each attribute listed in the left column (such as id or owner), a corresponding text field is found in the Label column on the right. The operator should enter the translation for each attribute’s name here.

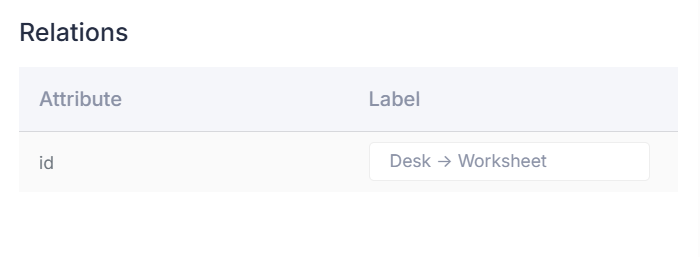

Translate the Relations

The Relations section works the same way as the attributes. For each listed relation, the operator should type its translation into the text field in the Label column.

Save the Changes

Once all translations are complete, the operator should click the Save button at the bottom of the drawer to apply them.

Managing translation bundles via the API

The API provides endpoints to retrieve translation bundles. The base URL for all endpoints is /api/v1/config/resources/.

Get available namespaces

Retrieve a list of available namespaces for translation bundles.

Endpoint:

GET /api/v1/config/resources/namespaces?version=:version

Parameters:

Name	Type	From	Description
version	string	query	The name of the version to query

Example response:

{
    "error": false,
    "status": 200,
    "message": "string",
    "errors": [
        {}
    ],
    "data": [
        "application",
        "entities"
    ],
    "pagination": {
        "hasPreviousPage": true,
        "hasNextPage": true,
        "previousPage": 0,
        "nextPage": 0,
        "recordsTotal": 0,
        "currentPage": 0,
        "startIndex": 0,
        "numPages": 0,
        "limit": 0
    }
}

Get specific translation bundles

Retrieve specific translation bundles by language, namespace, and bundle names.

Endpoint:

GET /api/v1/config/resources/:language/:namespace?version=:version&bundle[]=:bundleName1&bundle[]=:bundleName2

Parameters:

Name	Type	From	Description
language	string	path	Language code (e.g., “en”, “es”)
namespace	string	path	Namespace (e.g., “application”, “entities”)
version	string	query	The name of the version the bundles belong to
bundle[]	string	query	Array of bundle names to retrieve (value after namespace of $meta.name)

Example response:

{
    "error": false,
    "status": 200,
    "message": "string",
    "errors": [
        {}
    ],
    "data": {
        "id": "22b9f18a-493a-430d-9657-1261a3f9a4e9",
        "$meta": {
            "engine": "string",
            "format": "string",
            "fallback": "string",
            "language": "string",
            "version": "string",
            "name": "string",
            "created": "string",
            "modified": "string"
        },
        "en": {
            "additionalProp1": "string",
            "additionalProp2": "string",
            "additionalProp3": "string"
        },
        "es": {
            "additionalProp1": "string",
            "additionalProp2": "string",
            "additionalProp3": "string"
        }
    },
    "pagination": {
        "hasPreviousPage": true,
        "hasNextPage": true,
        "previousPage": 0,
        "nextPage": 0,
        "recordsTotal": 0,
        "currentPage": 0,
        "startIndex": 0,
        "numPages": 0,
        "limit": 0
    }
}

Update a translation bundle

Update the translations for a specific bundle.

Endpoint:

PATCH /api/v1/config/resources/:language/:namespace?version=:version&bundle=:bundle

Parameters:

Name	Type	From	Description
language	string	path	Language code (e.g., “en”, “es”)
namespace	string	path	Namespace (e.g., “application”, “entities”)
version	string	query	The name of the version the bundle belongs to
bundle	string	query	The name of the bundle being updated (value after $meta.name)

Request body:

{
    "id": "00000000-0000-0000-0000-1234567890AB",
    "en": {
        "additionalProp1": "string",
        "additionalProp2": "string",
        "additionalProp3": "string"
    },
    "es": {
        "additionalProp1": "string",
        "additionalProp2": "string",
        "additionalProp3": "string"
    }
}

Example response:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": {
    "id": "22b9f18a-493a-430d-9657-1261a3f9a4e9",
    "$meta": {
      "engine": "string",
      "format": "string",
      "fallback": "string",
      "language": "string",
      "version": "string",
      "name": "string",
      "created": "string",
      "modified": "string"
    },
    "en": {
      "additionalProp1": "string",
      "additionalProp2": "string",
      "additionalProp3": "string"
    },
    "es": {
      "additionalProp1": "string",
      "additionalProp2": "string",
      "additionalProp3": "string"
    }
  },
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}
