Role Management

Role based access control (RBAC)

Section titled “Role based access control (RBAC)”

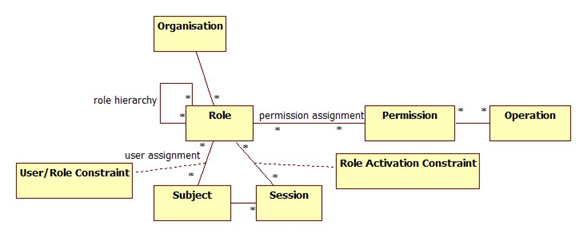

Role-Based Access Control (RBAC) is a widely adopted security model used to restrict system access to authorized users based on their assigned roles. Instead of granting permissions directly to individual users, RBAC assigns permissions to roles, and users are then associated with one or more roles. This approach simplifies management, enhances security, and supports the principle of least privilege.


In the context of the DatAscend API and its integrations, role based access control is structured around five core components:

Describing roles within the system

Section titled “Describing roles within the system”

A Role defines a set of permissions that reflect a specific job function or responsibility within the system. Roles are not tied to specific users but rather to the actions users are allowed to perform.

Roles are named, so the user can easily identify them. Some examples the user might create or encounter include:

RoleDescriptionComing by default
AdministratorFull permissionsYes
AnonymousVery limited permissionsYes
ManagerCan change settings within the entity configurationNo
EditorCan create and modify content within the entities they have access toNo
ViewerCan only view content within the entities they have access toNo

Anonymous role permission and interaction

Section titled “Anonymous role permission and interaction”

The Anonymous role is designed for users who are not logged into the system. This role has very limited permissions, primarily focused on viewing public content without the ability to modify or manage any resources. The specific permissions associated with the Anonymous role may include:

  • Read access to publicly available entities and reports.
  • No ability to create, update, or delete any objects.
  • No access to sensitive or restricted data.

This role is useful for scenarios where you want to provide basic information to users without requiring authentication. For example, a public dashboard or report that anyone can view without logging in, or reporting it to someone else.

Actions

Section titled “Actions”

Actions define what operations can be performed on objects.

ActionDescription
ManageAllows management of existing objects.
CreateAllows the creation of new objects.
GetAllows viewing of existing objects.
UpdateAllows modification of existing objects.
DeleteAllows removal of existing objects.

Objects

Section titled “Objects”

Objects represent the resources or entities within the system that users can interact with, such as:

  • Category Menus
  • Relationships
  • Datasources
  • Structure
  • Entities
  • Domains
  • Reports

Permissions

Section titled “Permissions”

Permissions are the result of combining actions with objects. For example, the permission to create an entity record is formed by combining the “create” action with the entity named object within the system.

Permissions are assigned to roles, not directly to users.

Endpoints for role management

Section titled “Endpoints for role management”

Below are the available endpoints for managing roles:

Get all roles

Section titled “Get all roles”

Retrieve all roles stored.

Endpoint:

GET /api/v1/roles/

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [...],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}

Create a new role

Section titled “Create a new role”

Create a new role.

Endpoint:

POST /api/v1/roles/

Request example:

{
  "item": "Role",
  "description": "New role",
  "dashboardCustomQuery": "1"
}

Response example:

{
  "status": 201,
  "error": false,
  "message": "string",
  "data": [
    {}
  ],
  "entityName": "string"
}

Update a role

Section titled “Update a role”

Update an existing role.

Endpoint:

PUT /api/v1/roles/:roleId

Request example:

{
  "item": "Role",
  "description": "Updated role",
  "dashboardCustomQuery": "1"
}

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [...],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}

Get a role

Section titled “Get a role”

Retrieve a specific role by its ID.

Endpoint:

GET /api/v1/roles/:roleId

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [...],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}

Delete a role

Section titled “Delete a role”

Delete a specific role by its ID.

Endpoint:

DELETE /api/v1/roles/:roleId

Response code:

204 No Content

Endpoint for managing role properties

Section titled “Endpoint for managing role properties”

Below are the available endpoints for managing role functionality:

Get all objects

Section titled “Get all objects”

Retrieve all objects stored.

Endpoint:

GET /api/v1/roles/objects

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [
    {
      "id": 1,
      "item": "cattle",
      "type": "Table"
    }
  ],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}

Get all actions

Section titled “Get all actions”

Retrieve all actions stored.

Endpoint:

GET /api/v1/roles/actions

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [
    {
      "id": "1",
      "item": "Get"
    }
  ],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}

Get all available permissions stored on object

Section titled “Get all available permissions stored on object”

Retrieve all available permissions stored on a specific object.

Endpoint:

GET /api/v1/roles/permissions/:objectType/:objectItem

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [
    {
      "id": "1",
      "actionId": "1",
      "objectId": "1",
      "active": true,
      "description": "admin"
    }
  ],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}

Get permissions stored on role by given object

Section titled “Get permissions stored on role by given object”

Retrieve permissions stored on a role for a given object.

Endpoint:

GET /api/v1/roles/:roleId/permissions/:objectType/:objectItem

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [
    {
      "roleId": "1",
      "objectItem": "cattle",
      "objectType": "Table",
      "permissions": "1"
    }
  ],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}

Overwrite permissions stored on role by given object

Section titled “Overwrite permissions stored on role by given object”

Overwrite permissions stored on a role for a given object.

Endpoint:

PUT /api/v1/roles/:roleId/permissions

Request example:

{
  "objectItem": "cattle",
  "objectType": "Table",
  "permissions": 1
}

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [
    {
      "roleId": "1",
      "objectItem": "cattle",
      "objectType": "Table",
      "permissions": "1",
      "id": "1",
      "actionId": "1",
      "objectId": "1",
      "active": true,
      "description": "Permission applied in object"
    }
  ],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}

Endpoints for assigning roles within a category menu

Section titled “Endpoints for assigning roles within a category menu”

Below are the available endpoints for assigning roles to category menus:

Get all roles assigned to a category menu

Section titled “Get all roles assigned to a category menu”

Retrieve all roles assigned to a specific category menu.

Endpoint:

GET /api/v1/category-menus/roles/:id

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [
    {
      "id": "1",
      "name": "Administrador",
      "dashboardCustomQuery": "0"
    }
  ],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}

Assign multiple roles to a category menu

Section titled “Assign multiple roles to a category menu”

Assign multiple roles to a specific category menu.

Endpoint:

POST /api/v1/category-menus/roles/:id

Request example:

{
  "roleIds": [1]
}

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [
    {
      "id": "1",
      "name": "Administrador",
      "dashboardCustomQuery": "0"
    }
  ],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}

Remove one or more roles to a category menu

Section titled “Remove one or more roles to a category menu”

Remove one or more roles to a specific category menu.

Endpoint:

DELETE /api/v1/category-menus/roles/:id

Request example:

{
  "roleIds": [2]
}

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [
    {
      "id": "1",
      "name": "Administrador",
      "dashboardCustomQuery": "0"
    }
  ],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}

Endpoint for managing roles within a permission set

Section titled “Endpoint for managing roles within a permission set”

Below are the available endpoints related to permissions:

Get permissions stored on role by given object

Section titled “Get permissions stored on role by given object”

Retrieve permissions stored on a role in studio by a given object.

Endpoint:

GET /api/v1/permissions/:roleId

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [
    {
      "name": "action",
      "permission": true
    }
  ],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}

Get all permissions stored on role by given object

Section titled “Get all permissions stored on role by given object”

Retrieve all permissions stored on a role in studio by a given object.

Endpoint:

GET /api/v1/permissions/all/:roleId

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [
    {
      "id": "1",
      "description": "(manage users on system)",
      "active": true,
      "objectId": "1",
      "actionId": "1",
      "actionItem": "Manage",
      "objectItem": "user",
      "objectType": "System",
      "allowed": true,
      "allowedSdate": "2024-10-23T06:00:00.000Z",
      "allowedEdate": "2024-10-23T06:00:00.000Z"
    }
  ],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}

Get the permissions by object and role id

Section titled “Get the permissions by object and role id”

Retrieve the permissions by object and role id.

Endpoint:

GET /api/v1/data-studio/:roleId/permission/:objectId

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [
    {
      "id": "0",
      "description": "(manage users on system)",
      "active": true,
      "objectId": "1",
      "actionId": "1",
      "actionItem": "Manage",
      "objectItem": "user",
      "objectType": "System",
      "allowed": true,
      "allowedSdate": "2024-10-23T06:00:00.000Z",
      "allowedEdate": "2024-10-23T06:00:00.000Z"
    }
  ],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}

Create permissions stored on role in studio by given object

Section titled “Create permissions stored on role in studio by given object”

Create permissions stored on a role in studio by a given object.

Endpoint:

POST /api/v1/data-studio/:roleId/permission

Request example:

{
  "permissions": [
    {
      "id": "1",
      "description": "(manage users on system)",
      "active": true,
      "objectId": 3196,
      "actionId": 2,
      "actionItem": "Manage",
      "objectItem": "user",
      "objectType": "System",
      "allowed": true,
      "allowedSdate": "2024-10-23T06:00:00.000Z",
      "allowedEdate": "2024-10-23T06:00:00.000Z",
      "rowAction": "add"
    }
  ]
}

Response example:

{
  "error": false,
  "status": 200,
  "message": "string",
  "errors": [
    {}
  ],
  "data": [
    {
      "id": "0",
      "description": "(manage users on system)",
      "active": true,
      "objectId": "1",
      "actionId": "1",
      "actionItem": "Manage",
      "objectItem": "user",
      "objectType": "System",
      "allowed": true,
      "allowedSdate": "2024-10-23T06:00:00.000Z",
      "allowedEdate": "2024-10-23T06:00:00.000Z"
    }
  ],
  "pagination": {
    "hasPreviousPage": true,
    "hasNextPage": true,
    "previousPage": 0,
    "nextPage": 0,
    "recordsTotal": 0,
    "currentPage": 0,
    "startIndex": 0,
    "numPages": 0,
    "limit": 0
  }
}
