Workflows

Workflows are automated flows that help you automate tasks in your system. By connecting different visual nodes (called Nodes) together in a workflow, you can build custom automations that run when records are created, when a button is clicked, or on a scheduled calendar timer.

---

How Workflows Work

A Workflow is essentially an interactive workflow. It consists of nodes (each performing a single task, like updating a record or sending an alert) and Connecting Lines (which pass information from one node to another).

Core Concepts

Workflow Steps

Each node in your workflow has Input Ports (on the left, where it receives information) and Output Ports (on the right, where it sends completed information). Connecting an output of one node to the input of another tells the system to pass that data along. All of the available nodes can be found in the left sidebar of the workflow editor, organized by category.

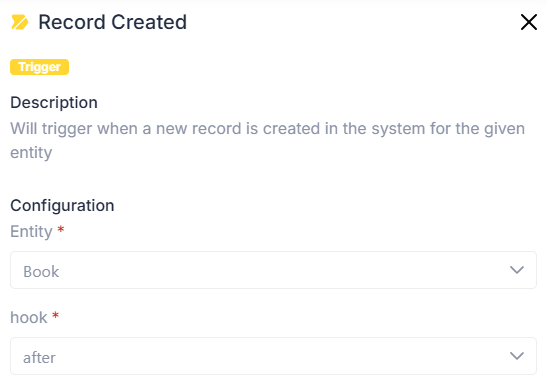

Also, some nodes after placing them can be configured with additional settings. Double-click almost any node to open its configuration panel, where you can set static values or customize how it behaves.

How the Automation Runs (Automatic Waiting)

The automation engine runs your workflow step-by-step:

1. The Starting Event: The flow starts when a special Trigger node fires (for example, when a new customer record is added to the system).
2. Step-by-step Completion: Each node automatically waits until it has received all the necessary information from the previous steps. As soon as the required information arrives, the node runs and passes its result to the next steps.
3. Safety Limits: To prevent flows from getting stuck in an endless loop, the system caps the total number of steps a single run can take. If a flow appears to be looping forever, it will automatically shut down safely.

Conditional Execution (The “Trigger” Input)

Almost every node has a special input at the very top called Trigger. This is a conditional gate that lets you decide whether a step should run:

No Connection: If nothing is connected to the Trigger input, the node runs normally.

If Yes (Truthy): If you connect a Yes/No decision (or any actual information) to the Trigger port, and that decision is “Yes” (or the information is successfully found), the node runs.

If No (Falsy/Empty): If the decision is “No” (or no information is found), this node is skipped. Most importantly, the system will automatically skip all remaining nodes connected after this one, making it easy to create branching paths.

Repeating Actions (Loops)

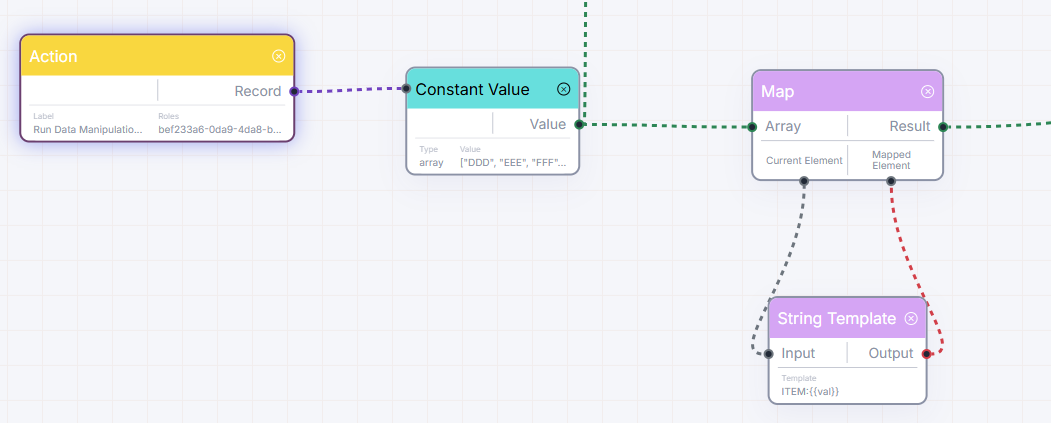

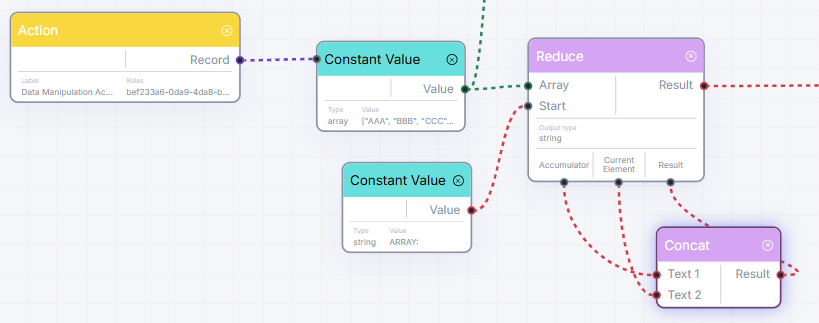

Some nodes allow you to repeat steps (like Map, Reduce, or ForEach). These nodes act as “containers” for a mini-workflow. For example, if you have a list of 10 items, the loop node will run its internal workflow 10 times—once for each item—and compile the final results automatically.

---

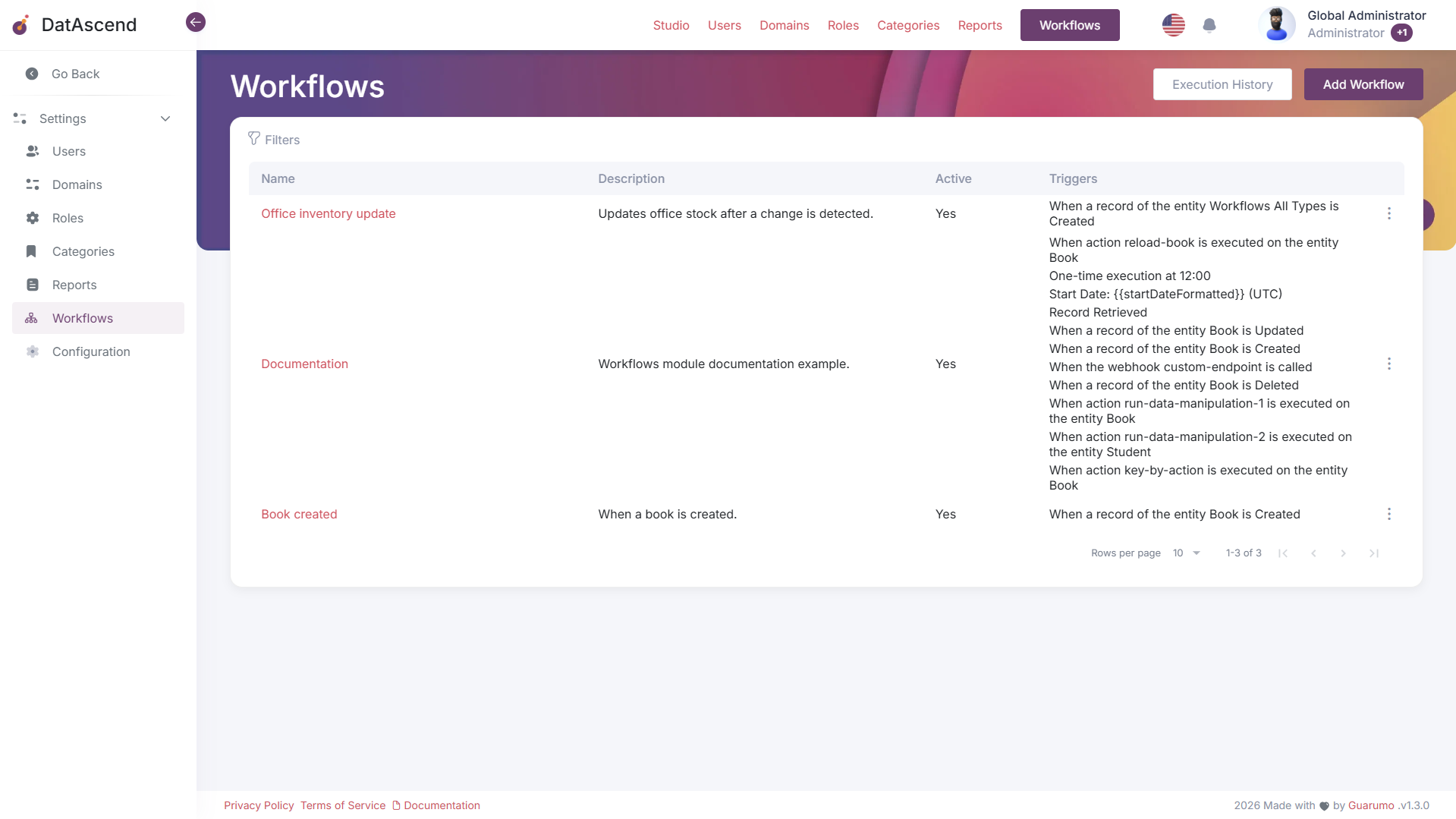

Creating and Managing Workflows

The Workflows page is the main entry point for viewing, creating, and managing all workflows in your system.

Header Actions

Action	Description
Execution History	Opens the global Execution History page, where you can audit and review past workflow runs across all workflows.
Add Workflow	Creates a new, empty workflow and opens the workflow editor so you can start building your automation.

Workflow Table

The main area displays a paginated table listing every workflow in your system. Each row represents a single workflow and shows the following columns:

Column	Description
Name	The workflow’s name. Click on it to open the workflow editor.
Description	A brief summary of what the workflow does.
Active	Indicates whether the workflow is currently enabled (Yes) or disabled. Only active workflows will listen for trigger events and run automatically.
Triggers	A summary of all trigger nodes configured in the workflow. This shows what events will cause the workflow to run (e.g., When a record of the entity Book is Created, When action reload-book is executed, One-time execution at 12:00).

Each row also has a ⋮ (three-dot) menu on the right side with additional actions for managing that workflow.

Filters

Click the Filters control at the top of the table to narrow down the displayed results. You can filter by workflow name, active status, or other available criteria to quickly locate specific workflows.

Pagination

The table is paginated for performance. Use the controls at the bottom of the page to:

Rows per page: Choose how many entries to display per page (default: 10).

Record count: The total number of matching records is displayed (e.g., “1-2 of 2”).

Navigation buttons: Jump between pages using the first, previous, next, and last page controls.

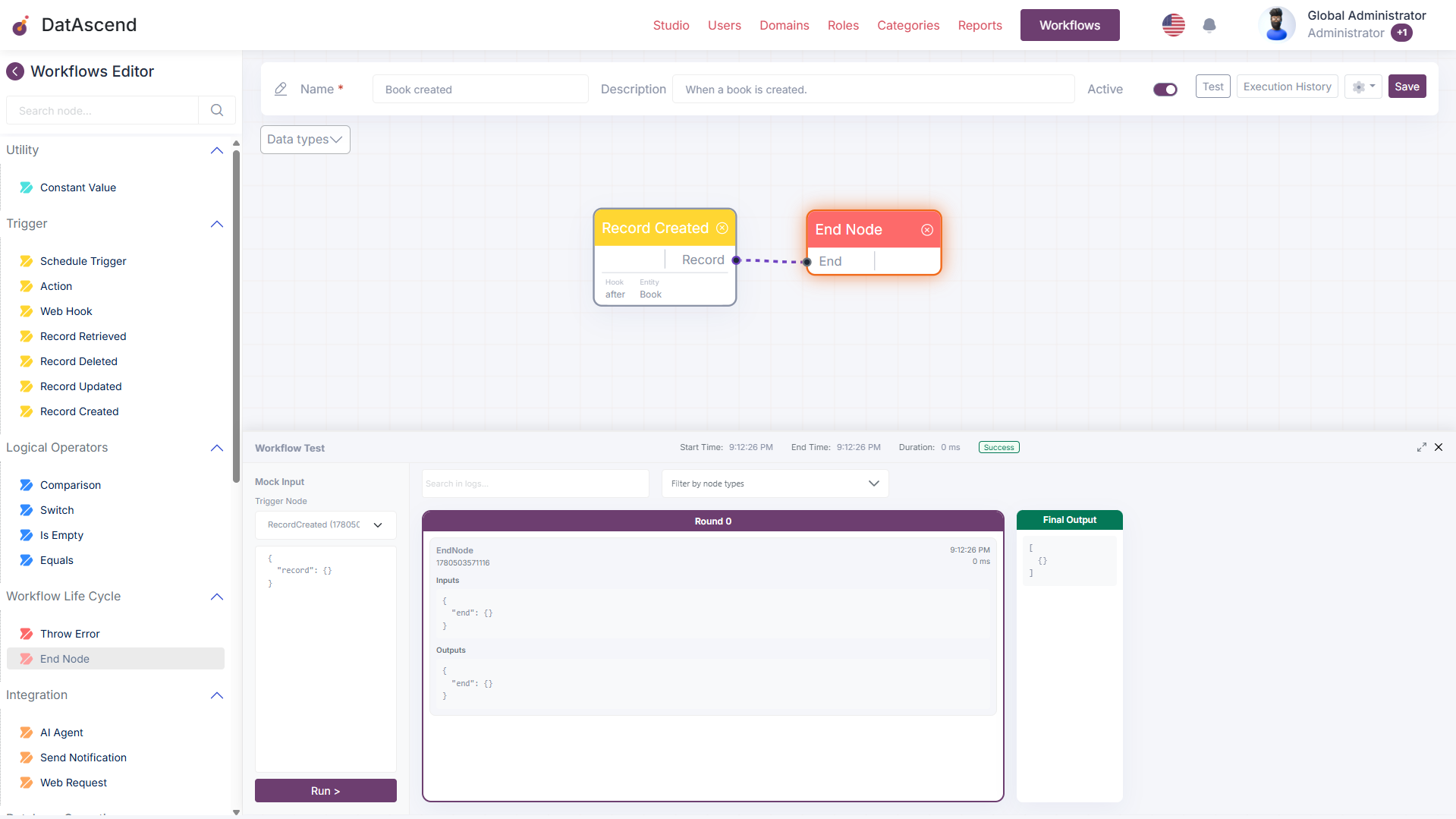

Workflow Editor Toolbar Options

The workflow editor toolbar contains the main controls for managing your workflow.

Option	Description
Name	A text input field for the workflow’s name. This is a required field.
Description	A text input field for a brief summary of what the workflow does. This is an optional field.
Active	Toggle switch that enables or disables the workflow. When Active is turned on, the workflow will listen for its trigger events and run automatically. When turned off, the workflow is paused and will not execute even if triggered.
Test	Opens a testing panel that lets you manually run and debug the workflow without needing to trigger it through a real event. Use this to validate your flow logic before activating it.
Execution History	Opens a log of all past workflow runs. Use this to review execution statuses, inspect input/output data for each node, and troubleshoot failures.
Save	Saves all current changes made to the workflow, including node positions, connections, and settings.

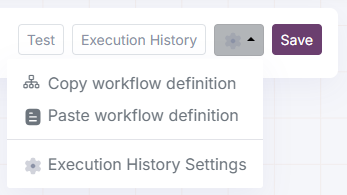

Dropdown Menu

Clicking the gear icon (⚙) in the toolbar opens a dropdown with additional options:

Copy Workflow Definition

Copies the entire workflow structure — including all nodes, connections, and settings — to your clipboard. This is useful for:

Duplicating workflows: Paste the definition into a new workflow to quickly replicate an existing automation.

Backup and versioning: Save a copy of the workflow definition externally before making major changes.

Sharing with others: Send the workflow definition to a colleague who can paste it into their own environment.

Paste Workflow Definition

Loads a workflow definition from your clipboard into the current workflow editor. When used, it replaces the existing canvas content with the pasted definition. This is useful for:

Restoring from backup: Paste a previously copied definition to revert changes.

Importing workflows: Receive a workflow definition from another user and load it directly into your editor.

Migrating between environments: Move a workflow from one DatAscend instance to another by copying and pasting the definition.

Execution History Settings

Opens the configuration dialog for managing how execution history is stored. See the Execution History Settings section below for details on each available setting.

---

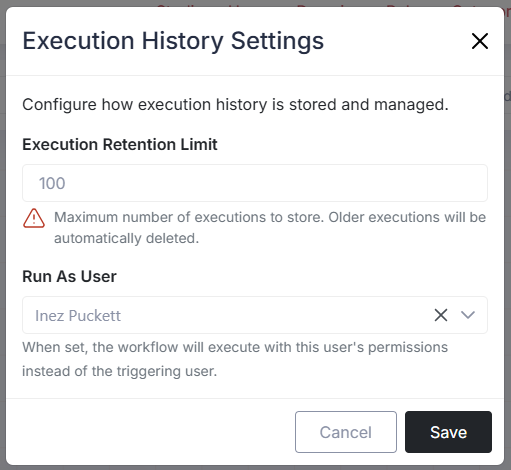

Execution History Settings

You can configure how your workflow’s execution history is stored and managed by opening the Execution History Settings dialog from the workflow editor toolbar.

Execution Retention Limit

Setting	Description
Execution Retention Limit	Maximum number of past executions the system will keep in history for this workflow. Once the limit is reached, the oldest executions are automatically deleted to make room for new ones.

For example, if you set the limit to 100, the system will only store the last 100 runs. The 101st oldest execution will be removed automatically when a new one is recorded.

Tip: Set a reasonable limit based on your auditing and debugging needs. A higher limit preserves more history but uses more storage.

---

Run As User

Setting	Description
Run As User	When a specific user is selected, the workflow will execute with that user’s permissions instead of the permissions of the user who triggered the workflow.

This is useful when you need the workflow to perform actions (such as creating or editing records) that the triggering user may not have access to. For example, if a regular user triggers a workflow that needs to create records in a restricted domain, you can set the “Run As User” to an admin account so the workflow runs with elevated permissions.

Tip: If the Run As User field is left empty (no user selected), the workflow runs under the triggering user’s own permissions by default.

---

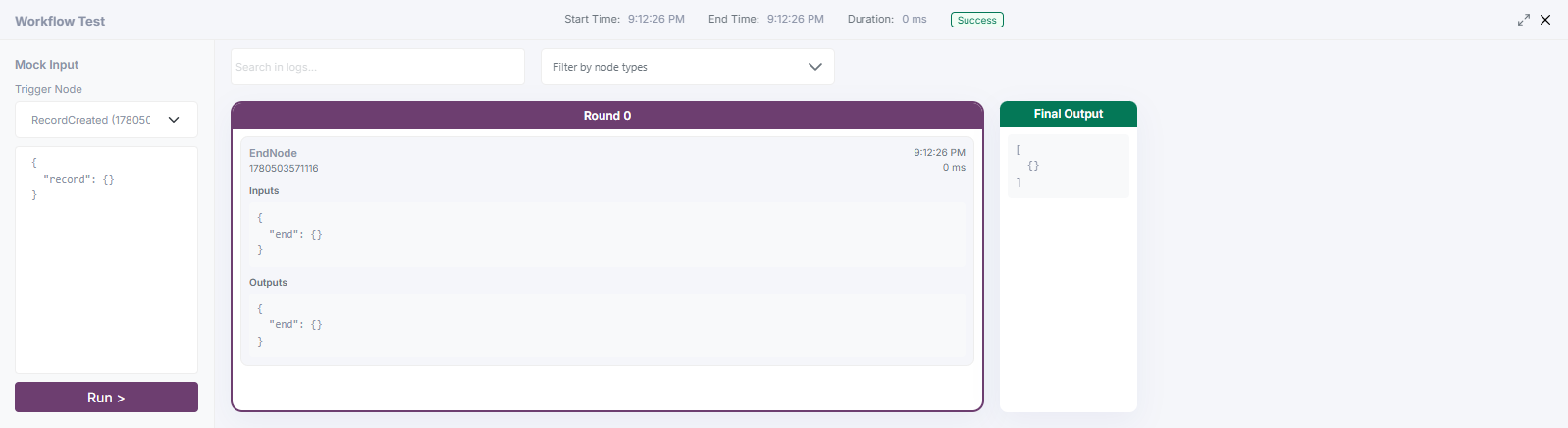

Testing Your Workflow

The Workflow Test panel lets you manually run and debug your workflow without needing to trigger it through a real event. Open it by clicking the Test button in the workflow editor toolbar.

Mock Input

Before running the test, you need to define the input data that the workflow will receive.

Component	Description
Trigger Node	A dropdown selector that lets you choose which trigger node to simulate. The dropdown lists all trigger nodes present in your workflow (e.g., a Custom Action Button or Record Created trigger).
JSON Editor	A text area where you provide the mock input payload as a JSON object. This simulates the data that a real trigger would send. For example, to test a workflow triggered by a record, you might write {"record": {"id": "123", "name": "Sample"}}.
Run >	Starts the test execution using the provided mock input and trigger node selection.

Execution Status Bar

Once a test is executed, a status bar appears at the top of the panel displaying summary information about the run:

Field	Description
Start Time	The timestamp when the test execution began.
End Time	The timestamp when the test execution finished.
Duration	The total time the execution took, displayed in milliseconds (ms).
Status	The outcome of the test run. Shows Success (green badge) if the workflow completed without errors, or Failed (red badge) if an error was encountered.

Log Search & Filtering

Control	Description
Search in logs	A text input field that lets you search across all execution logs for specific node names, values, or keywords. Useful for quickly locating a particular node in complex workflows.
Filter by node types	A dropdown that filters the visible rounds to only show specific node types (e.g., only show loop nodes, only show record operations). This helps isolate the behavior of certain node categories.

Execution Rounds

The test results are organized into Rounds, displayed as horizontal cards. Each round represents a logical step or parallel execution phase in the workflow.

Round	Description
Round 0	The initial round. Contains the first nodes that execute immediately after the trigger fires (e.g., a ConstantValue node or the first data transformation).
Round 1+	Subsequent rounds contain nodes that depend on the output of previous rounds. Each round may contain one or more nodes that ran in parallel.

Each round card displays:

Node Name: The type of node that executed (e.g., ConstantValue, Compare, StringTemplate, PushItem).

Node ID: A unique identifier for that specific node instance.

Timestamp: When the node executed (e.g., 9:04:14 AM).

Duration: How long the node took to complete (e.g., 1 ms, 0 ms, 3 ms).

Node Execution Details

Clicking on a node card within a round expands its details, showing the full execution context:

Section	Description
Inputs	The data the node received from previous nodes or the trigger, displayed as a JSON object.
Configuration	The static settings configured on the node (e.g., field paths, operation types, template strings).
Outputs	The data the node produced after execution, displayed as a JSON object. This is what gets passed to the next connected nodes.

Tip: Use the execution details to verify that each node is receiving the expected input and producing the correct output. If a node fails or produces unexpected data, check its configuration and the outputs of the nodes connected before it.

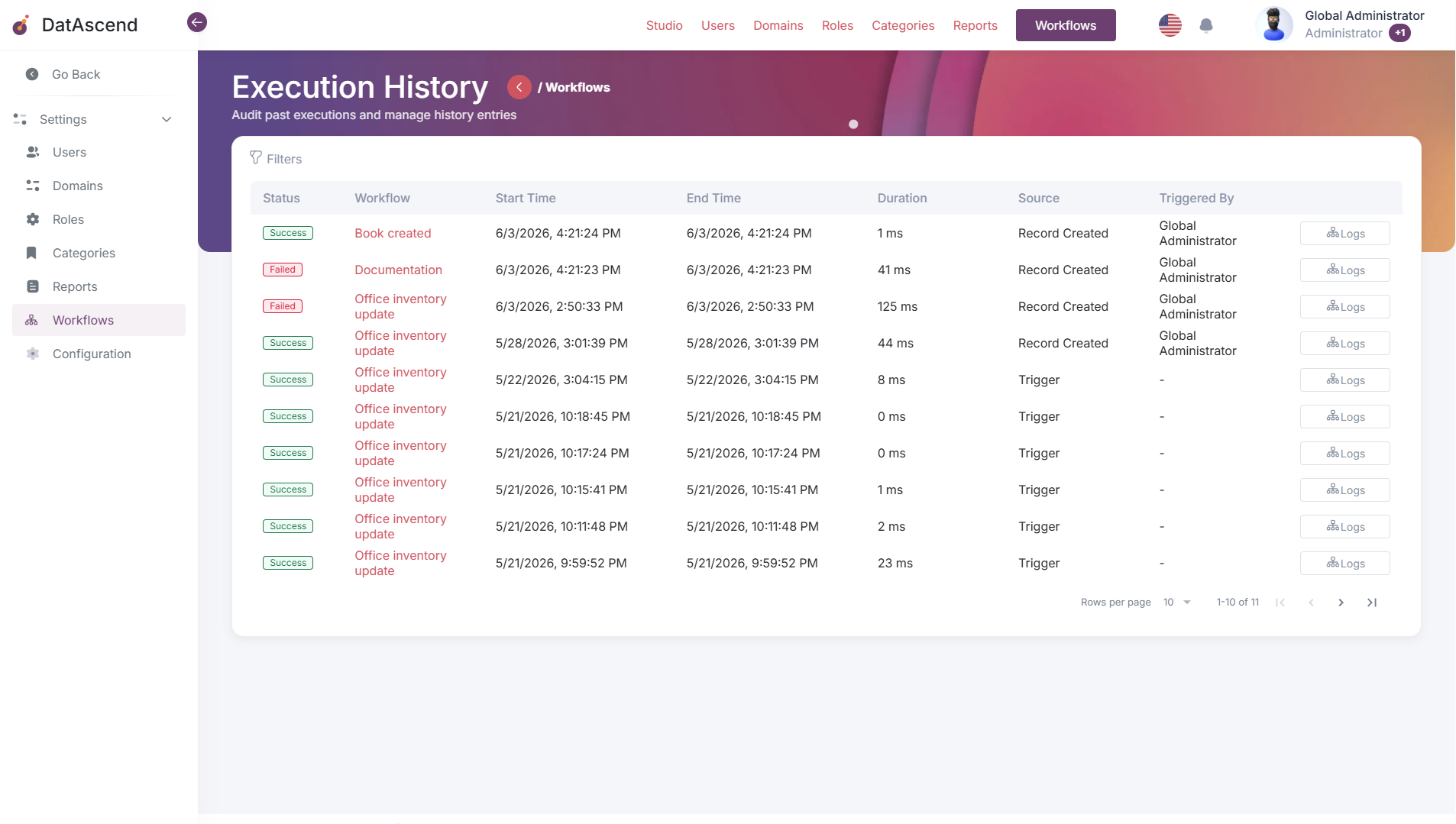

Execution History

The Execution History page lets you audit and review all past workflow runs. Access it by clicking the Execution History button in the workflow editor toolbar.

Page Overview

The page displays a paginated table containing every recorded execution of your workflow. Each row represents a single run and shows summary information at a glance.

Column	Description
Status	The outcome of the execution. Shows Success (green badge) if the workflow completed without errors, or Failed (red badge) if an error was encountered during the run.
Workflow	The name of the workflow that was executed.
Start Time	The date and time when the execution began.
End Time	The date and time when the execution finished.
Duration	The total time the execution took to complete, displayed in milliseconds (ms).
Source	What triggered the execution. Common values include Record Created, Record Updated, Trigger (manual or scheduled), Custom Action Button, or Webhook.
Triggered By	The user who initiated the workflow run, or the role that triggered it. Displays a dash (-) when the workflow was triggered automatically by the system (e.g., via a scheduled timer).
Logs	A button that opens the detailed execution log for that specific run, allowing you to inspect the input and output of each individual node.

Filters

Click the Filters control at the top of the table to narrow down the displayed results. You can filter by status, workflow name, start/end time ranges, duration, source type, and triggering user. This makes it easier to quickly locate specific executions.

Pagination

The table is paginated for performance. Use the controls at the bottom of the page to:

Rows per page: Choose how many entries to display per page (default: 10).

Record count: The total number of matching records is displayed (e.g., “1-9 of 9”).

Navigation buttons: Jump between pages using the first, previous, next, and last page controls.

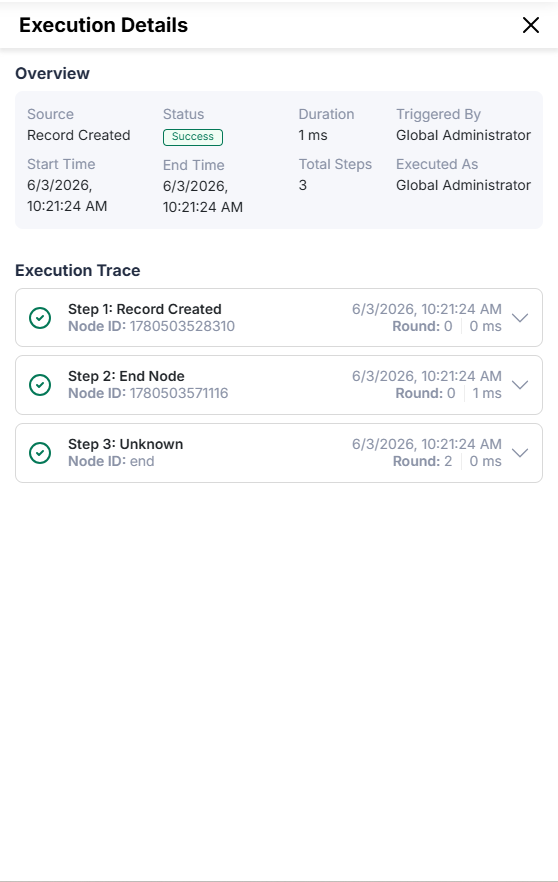

Execution Logs

Clicking the Logs button for a specific execution opens a detailed log of that run, showing every node that executed, along with its inputs, configuration, outputs, and any errors encountered.

---

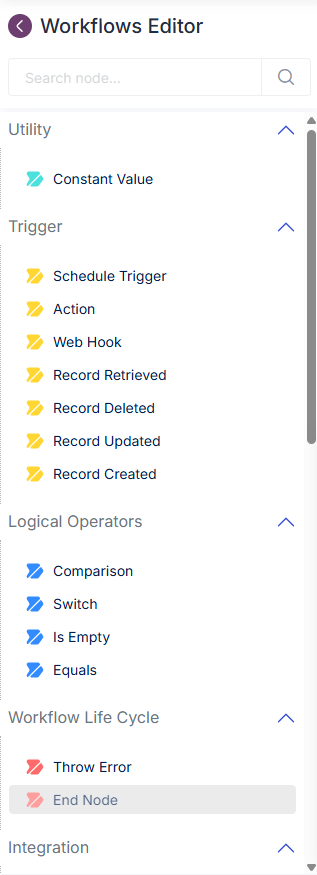

Node Directory

---

Starting Events (Triggers)

Starting Event nodes are the entry points of your workflow. They do not have inputs; they fire when an event occurs and produce the initial details.

Record Created

Description & Use Case: Runs the workflow automatically when a new record is added to your app. Use this to auto-assign a task when a lead is added, or to send a welcome email the second a user registers.

Details Table:

Name	Type	Required	Description	Default
Entity	Settings	Text (List)	The database category to monitor (e.g. Customers, Invoices).	Required
Run Stage	Settings	Text (Enum)	Choose "before" (to check fields before saving) or "after" (to trigger actions post-save).	"after"
Record Details	Output	Record Details	Complete field values of the newly added record.	-

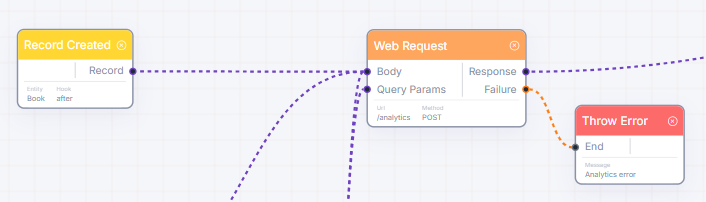

Node usage example scenario:

---

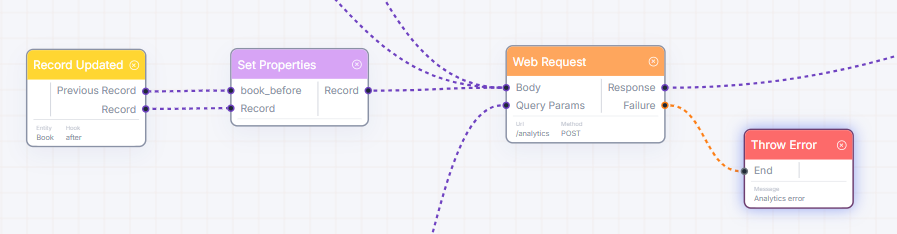

Record Updated

Description & Use Case: Fires when an existing record is edited. Use this to notify supervisors when a project status changes to “Completed”, or to recalculate scores when test answers are updated.

Details Table:

Name	Type	Required	Description	Default
Entity	Settings	Text (List)	The database category to monitor.	Required
Run Stage	Settings	Text (Enum)	Choose whether to run "before" or "after" edits are saved.	"after"
Record Details	Output	Record Details	The record fields with the newly saved updates.	-
Previous Details	Output	Record Details	The record fields before the updates were applied.	-

Node usage example scenario:

---

Record Deleted

Description & Use Case: Fires when a database record is removed. Use this to notify managers of deletion audits, or to clean up files linked to a removed project.

Details Table:

Name	Type	Required	Description	Default
Entity	Settings	Text (List)	The database category to monitor.	Required
Run Stage	Settings	Text (Enum)	Runs "before" or "after" the record is removed.	"after"
Record Details	Output	Record Details	The details of the deleted record.	-

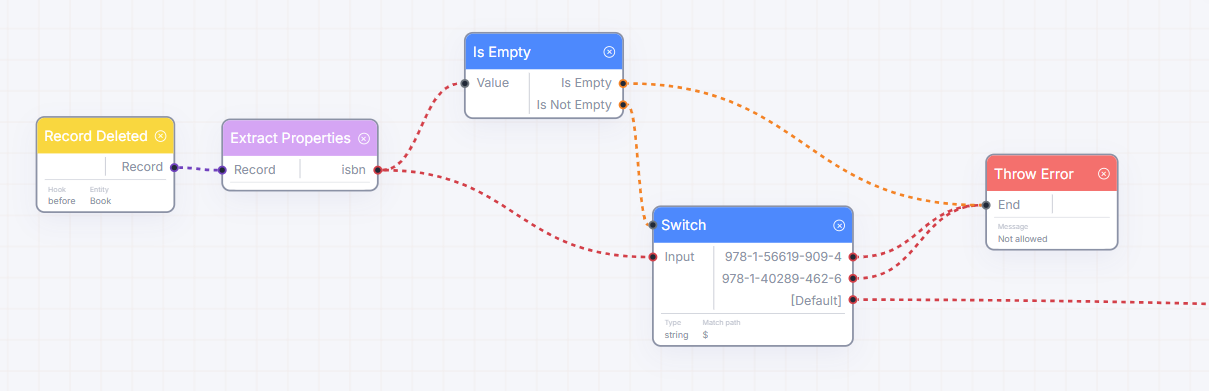

Node usage example scenario:

---

Record Viewed/Queried

Description & Use Case: Runs when a user views or queries a record. Use this to log access history for sensitive records, or to increment views counters in real time.

Details Table:

Name	Type	Required	Description	Default
Entity	Settings	Text (List)	The database category to monitor.	Required
Run Stage	Settings	Text (Enum)	Runs "before" or "after" access completes.	"after"
Record Details	Output	Record Details	The details of the viewed record.	-

Node usage example scenario:

---

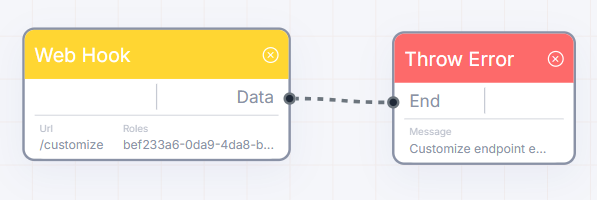

Webhook

Description & Use Case: Creates a custom web address. When external software sends data to this address, your workflow triggers instantly. Use this to receive order notifications from Shopify or forms submitted from an external site.

Details Table:

Name	Type	Required	Description	Default
Webhook Path	Settings	Text	Unique URL path name (e.g., shopify-orders). Letters and numbers only.	"my-custom-endpoint"
Allowed Roles	Settings	List of Text	User roles permitted to trigger this webhook.	Required
Request Data	Output	Any	The incoming information payload sent by the external system.	-

Node usage example scenario:

---

Custom Action Button

Description & Use Case: Displays a custom action button on a record screen. When a user clicks it, this workflow starts. Use this to add a custom “Approve Request” button or an “Export to PDF” button to invoices.

Details Table:

Name	Type	Required	Description	Default
Entity	Settings	Text (List)	The record page where this button will appear.	Required
Action Path	Settings	Text	A unique slug ID for the button.	"my-custom-action"
Button Label	Settings	Text	The text displayed on the button screen (e.g. “Approve Order”).	"My Custom Action"
Allowed Roles	Settings	List of Text	User roles authorized to see and click the button.	Required
Record Details	Output	Record Details	Complete details of the record where the button was clicked.	-

Node usage example scenario:

---

Scheduled Timer

Description & Use Case: Runs the workflow automatically at designated times. Use this to send weekly sales summaries every Friday at 5:00 PM, or to sync currency exchange rates hourly.

Details Table:

Name	Type	Required	Description	Default
Timer Mode	Settings	Text (Enum)	Run mode: "once", "interval" (periodic), "intervalBetweenTimes", "atSpecificTime", or "cron".	"interval"
Timezone	Settings	Text	Timezone context for schedules.	"UTC"
Start Date	Settings	Date	The date when the scheduler becomes active.	Required
Time	Settings	Text	The daily run time (e.g. "12:00"). Required for "once" and "atSpecificTime".	"12:00"
Interval Value	Settings	Number	Periodic gap size. Required for "interval" modes.	1
Interval Unit	Settings	Text (Enum)	Unit of gap size ("seconds", "minutes", "hours", "days").	"minutes"
Start Time	Settings	Text	Start of daily active window (e.g. "09:00").	"00:00"
End Time	Settings	Text	End of daily active window (e.g. "23:59").	"23:59"
Days	Settings	List of Text	Days of the week to run (e.g. Monday, Tuesday).	All weekdays
Cron Pattern	Settings	Text	Standard 5-field cron string for custom timing.	-
Trigger Time	Output	Text	The date and time when the flow was executed.	-

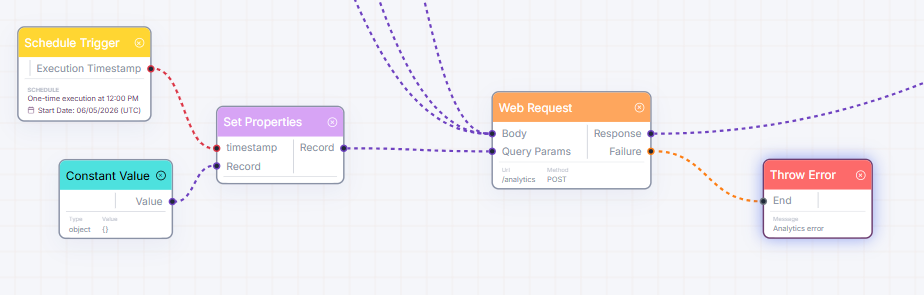

Node usage example scenario:

---

Working with Records (Database Operations)

These nodes let you create, find, edit, or delete records in your system.

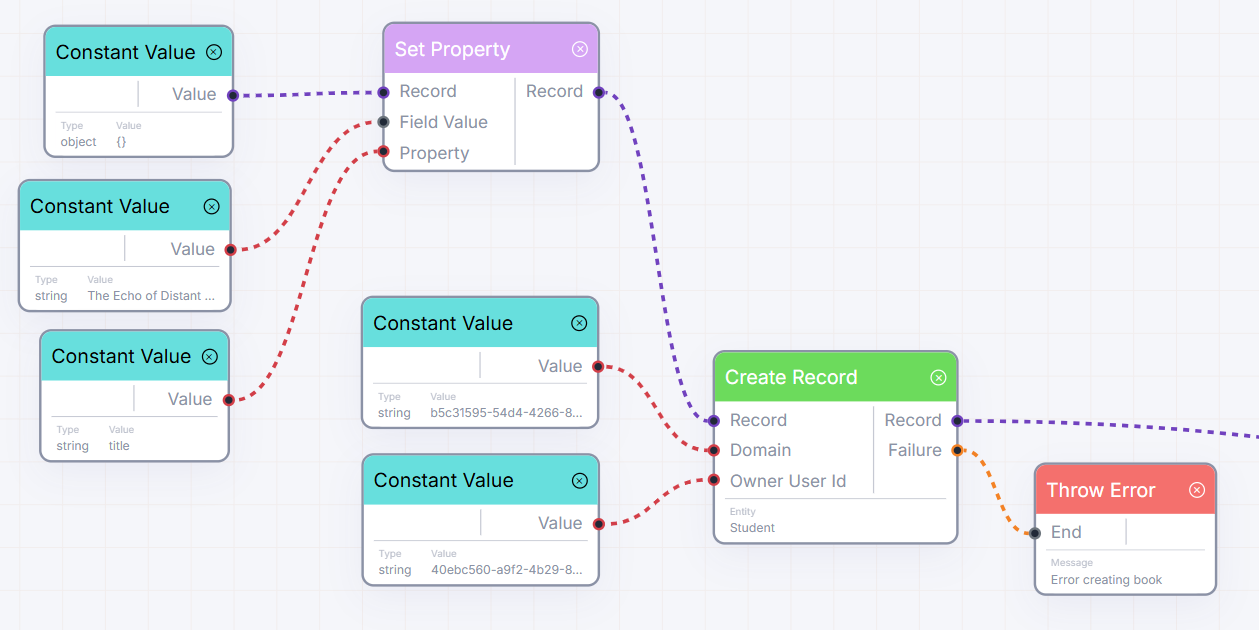

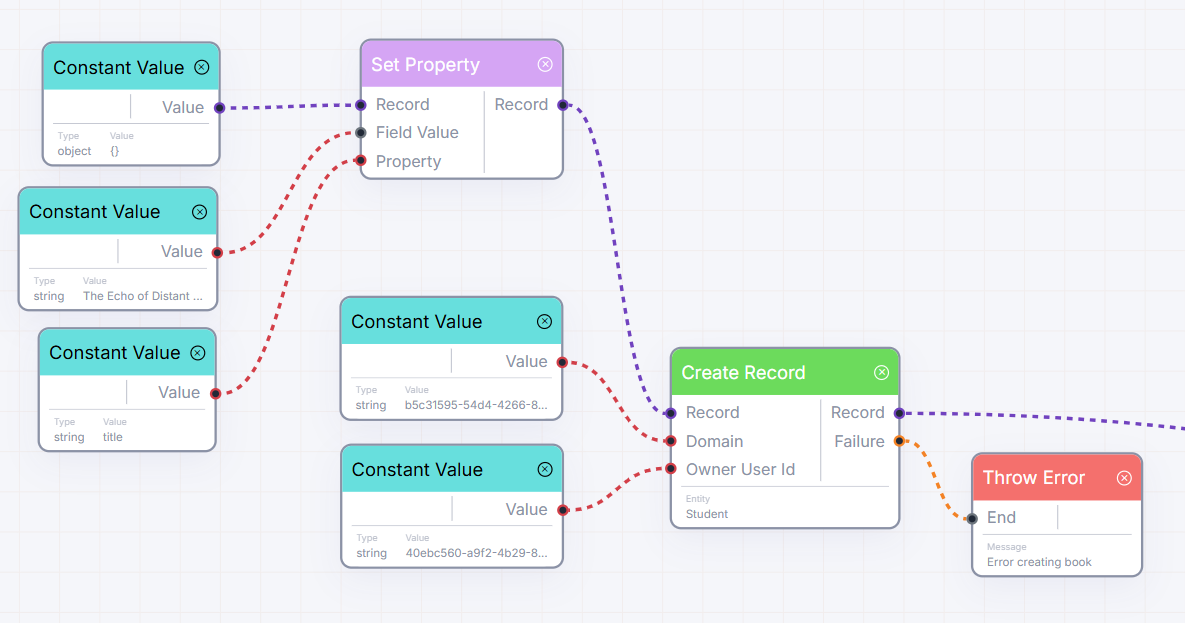

Create New Record

Description & Use Case: Adds a new record to your database. Use this to automatically create a “Task” record when a new customer complains, or to log audit trials.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional execution gate. Skips step if connected and decision is “No”.	Optional
Record Details	Input	Record Details	Form values to save in the new record.	Required
Domain	Input	Text	Administrative domain code for organization access.	Required
User ID	Input	Text	Owner user ID to assign to the new record.	Optional
Entity	Settings	Text (List)	Target database category where the record will be saved.	Required
Record Details	Output	Record Details	The newly created record including its database ID.	-
Failed?	Output	Yes/No	Returns “Yes” if the save operation fails.	-

Node usage example scenario:

---

Get Single Record

Description & Use Case: Finds a single record in your database using its ID. Use this to pull details about a specific manager when you only have their user ID.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate. Skips step if connected and decision is “No”.	Optional
Record ID	Input	Text	The unique ID code of the record to locate.	Required
Entity	Settings	Text (List)	Target category to search in.	Required
Record Details	Output	Record Details	The complete record details found.	-

Node usage example scenario:

---

Find Multiple Records

Description & Use Case: Searches the database for a list of records matching specific criteria. Use this to get a list of all products with low stock, or find all active users.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Filter Rules	Input	Record Details	Search criteria (rules for filtering).	Optional
Max Items	Input	Number	Maximum number of items to return.	Optional
Page Number	Input	Number	Page index for paginated search.	Optional
Sort Field	Input	Text	Record field name to sort by.	Optional
Sort Direction	Input	Text	Ascending ("ASC") or Descending ("DESC").	Optional
Entity	Settings	Text (List)	Database category to search.	Required
Found Records	Output	List	List of records matching filters.	-
Total Count	Output	Number	Total count of all matching records in the system.	-

Node usage example scenario:

---

Edit Record

Description & Use Case: Modifies fields on an existing database record. Use this to mark an invoice as “Overdue” when payment times expire.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Record ID	Input	Text	The ID code of the record you want to edit.	Required
Updated Details	Input	Record Details	Form containing fields you want to update.	Required
Entity	Settings	Text (List)	Database category to update.	Required
Record Details	Output	Record Details	The record details after changes are saved.	-

Node usage example scenario:

---

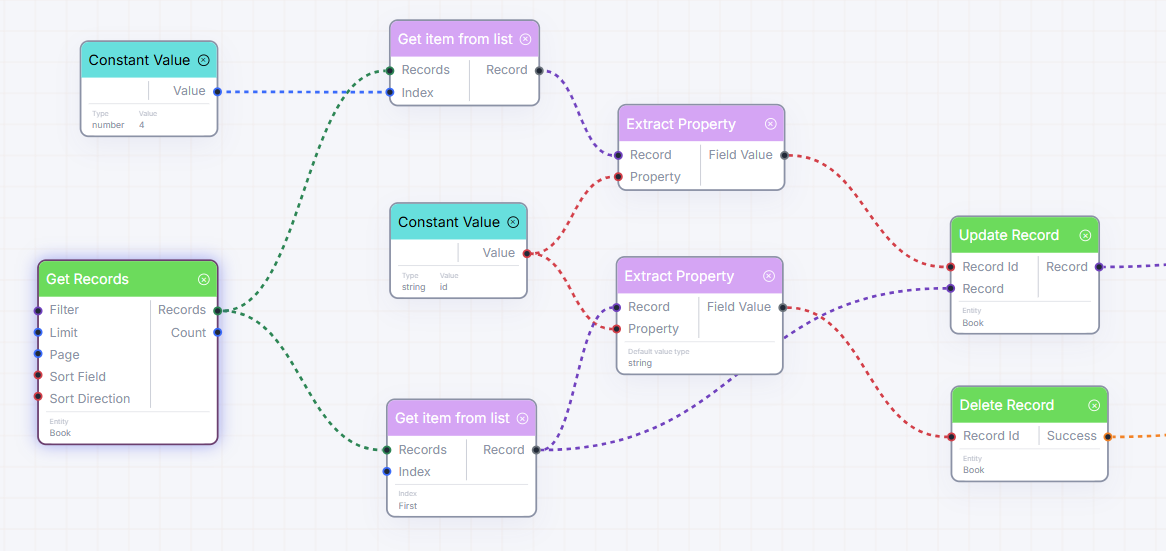

Delete Record

Description & Use Case: Permanently deletes a record. Use this to clear test leads or old logs automatically.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Record ID	Input	Text	The ID of the record to delete.	Required
Entity	Settings	Text (List)	Database category to delete from.	Required
Success?	Output	Yes/No	Returns “Yes” if deletion completed successfully.	-

Node usage example scenario:

---

Handling Information (Data Manipulation)

These nodes help you pull fields out of records, merge text, calculate math, organize lists, and link items.

Extract Field

Description & Use Case: Pulls out a specific value from a record group (e.g. extracting a customer’s Name from a User Account record).

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Record Details	Input	Record Details	The source record group.	Required
Field Path	Input	Text	Path to extract (e.g. billing.city). Overrides settings.	Optional
Field Path	Settings	Text	Static target field path.	-
Fallback Type	Settings	Text (Enum)	Data type to return if empty (Text, Number, Date, Yes/No, List, Record).	"string"
Fallback Value	Settings	Text	Backup value to use if field is empty.	-
Extracted Value	Output	Any	The extracted field value.	-

Node usage example scenario:

---

Extract Multiple Fields

Description & Use Case: Pulls out several field values from a single record simultaneously. Use this to split a customer record into separate “Email”, “Phone”, and “Name” outputs.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Record Details	Input	Record Details	The source record group.	Required
Fields	Settings	List of Text	The list of field names and data types to extract.	Required
Dynamic Outputs	Output	Any	Generates one output port for each field path configured.	-

Node usage example scenario:

---

Set Single Field

Description & Use Case: Writes a new value into a specific field on a record details node. Use this to update a temporary status field inside your flow before passing it to subsequent nodes.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Record Details	Input	Record Details	The record node to modify.	Required
Value	Input	Any	The new data to write in the field.	Required
Field Path	Input	Text	Target field path. Overrides settings.	Optional
Field Path	Settings	Text	Target field path.	-
Record Details	Output	Record Details	The updated record node.	-

Node usage example scenario:

---

Set Multiple Fields

Description & Use Case: Writes values into multiple fields on a record at once. Use this to stamp creation times and creator user IDs on custom records simultaneously.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Record Details	Input	Record Details	The record node to update.	Required
Properties	Settings	List of Text	List of field keys and types to create.	Required
Dynamic Inputs	Input	Any	Generates one input port for each property key defined in Settings.	-
Record Details	Output	Record Details	The updated record node.	-

Node usage example scenario:

---

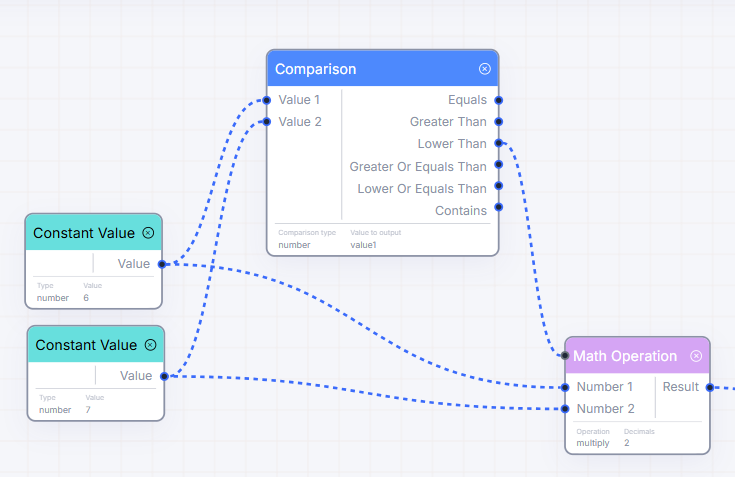

Math Operation

Description & Use Case: Performs basic math (adding, subtracting, dividing, multiplying) on two numbers. Use this to calculate tax totals or multiply quantities by prices.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Number 1	Input	Number	First number.	Required
Number 2	Input	Number	Second number.	Required
Operation	Settings	Text (Enum)	Choose: "add", "substract", "divide", or "multiply".	Required
Decimals	Settings	Number	Number of decimal places to round results to.	-
Result	Output	Number	Calculated result.	-

Node usage example scenario:

---

Wrap Value in Record

Description & Use Case: Wraps a single value inside a new record node under a custom field name (e.g. converting the number 100 into { score: 100 }).

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Value	Input	Any	Value to wrap.	Required
Field Name	Settings	Text	Field name key for the new record.	Required
Record Details	Output	Record Details	{ [field]: value }.	-

Node usage example scenario:

---

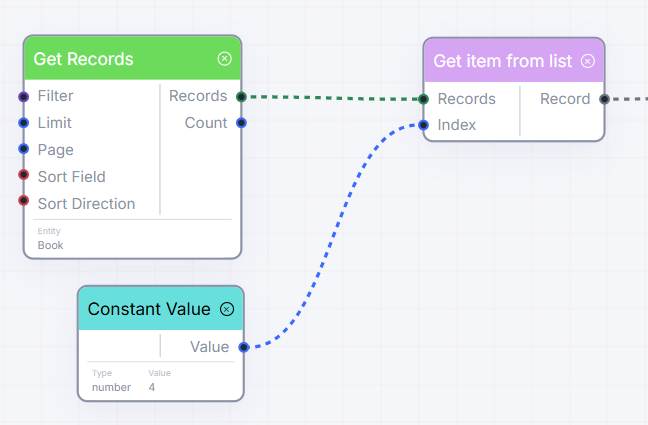

Get List Item

Description & Use Case: Grabs a single item from a list (array) of things. Use this to find the first items in search results or get the latest entry in a collection.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
List	Input	List	The list containing the items.	Required
Position Index	Input	Number	The index position (0 = first, 1 = second). Overrides settings.	Optional
Quick Option	Settings	Text (Enum)	Shortcut: "First" or "Last".	-
Extracted Item	Output	Any	The item retrieved from the list.	-

Node usage example scenario:

---

Concat / Join Text

Description & Use Case: Glues two pieces of text together. Use this to combine a prefix (e.g., "REF-") with a number to generate invoice reference codes.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Text 1	Input	Text	First piece of text.	Required
Text 2	Input	Text	Second piece of text.	Required
Combined Text	Output	Text	The combined text.	-

Node usage example scenario:

---

Reduce / Combine List — Loop Container

Description & Use Case: Loops over a list and combines all items into a single final value. Use this to calculate the grand total sum of a list of invoice items.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
List	Input	List	List of items to loop over.	Required
Initial Value	Input	Any	Starting total value.	Required
Output Type	Settings	Text (Enum)	The type of final result (Number, Text, Yes/No, Record, List).	Required
Accumulator	Loop Out	Any	The running total inside the loop step.	-
Current Element	Loop Out	Any	The active item inside the loop step.	-
Iteration Result	Loop In	Any	Pass the updated total back from the loop step here.	-
Result	Output	Any	The final combined value.	-

Node usage example scenario:

---

Map / Transform List — Loop Container

Description & Use Case: Loops over a list, transforms each item using a mini workflow, and builds a brand-new list. Use this to take a list of orders and format them all into clean billing lines.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
List	Input	List	Source list of items.	Required
Current Element	Loop Out	Any	The active item inside the loop.	-
Mapped Element	Loop In	Any	Pass the transformed item back from the loop here.	-
Result	Output	List	The newly compiled list of transformed items.	-

Node usage example scenario:

---

For Each / Run For Each — Loop Container

Description & Use Case: Loops sequentially over a list to perform an action for each item. Use this to send a custom notification to a list of users, or delete a list of expired items.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
List	Input	List	The list to loop over.	Required
Item	Loop Out	Any	The active list item.	-
Position Index	Loop Out	Number	The zero-based index of the active item in the list.	-
Next Step	Loop In	Any	Required. Connect this to the final step in your loop to tell the system to proceed.	-
Completed	Output	List	Fires the original list once the loop completely finishes.	-

Node usage example scenario:

---

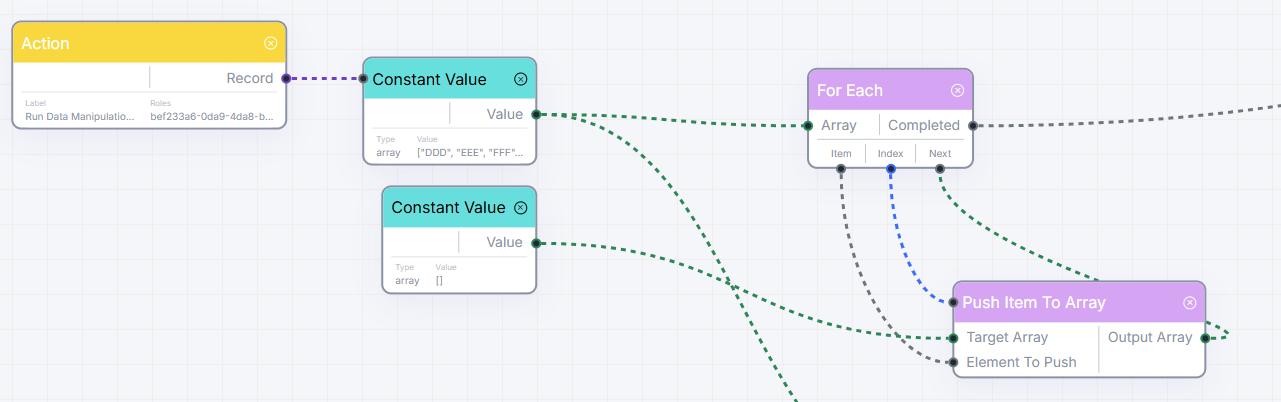

Add Item to List

Description & Use Case: Appends a new item to the end of a list. Use this to add a new item to a shopping cart list.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
List	Input	List	The base list.	Required
Item	Input	Any	Item to add.	Required
Result List	Output	List	The updated list containing the new item.	-

Node usage example scenario:

---

Text Template

Description & Use Case: Inserts variables into a message template. Use this to draft personalized SMS notifications (e.g. "Hi {{val.name}}, your code is {{val.code}}").

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Source Info	Input	Any	The record or value to pull data from.	Required
Template	Settings	Text	Text template containing bracket tokens (e.g., {{val.name}}).	"{{val}}"
Result Text	Output	Text	The finished text with all placeholders filled in.	-

Node usage example scenario:

---

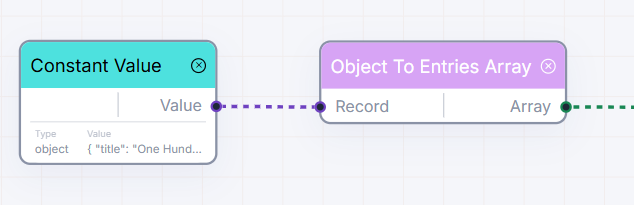

Record to Key-Value List

Description & Use Case: Converts a record group into a list of key-value pairs (e.g. converting { a: 1 } into [{ key: 'a', value: 1 }]). Use this to loop through all fields of a record dynamically.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Record Details	Input	Record Details	Object to decompose.	Required
Key-Value List	Output	List	List of key-value structure items.	-

Node usage example scenario:

---

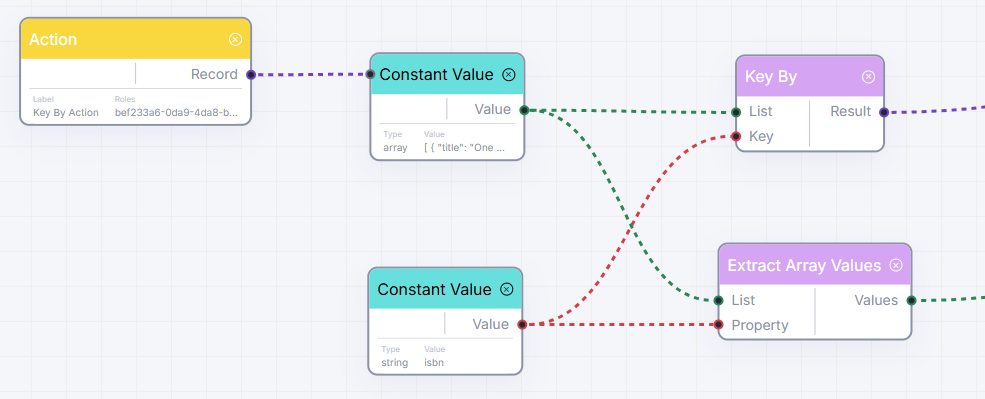

Extract array values

Description & Use Case: Pulls a specific field from every item inside a list of records (e.g. pulling a list of email addresses from a list of user records).

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
List	Input	List	List of record details.	Required
Field Path	Input	Text	The field name to pull. Overrides settings.	Optional
Field Path	Settings	Text	The field name to pull from each record.	-
Result List	Output	List	A simple list containing only the extracted values.	-

Node usage example scenario:

---

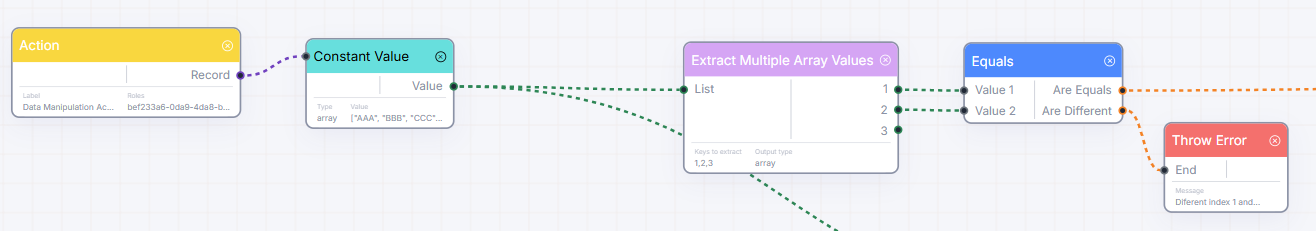

Extract multiple array values

Description & Use Case: Pulls several fields from every item in a list of records simultaneously, returning them as separate lists.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
List	Input	List	List of record details.	Required
Fields	Settings	List of Text	The list of field names to extract.	Required
Output Structure	Settings	Text	Format setting.	"array"
Dynamic Outputs	Output	List	Generates one output port for each field name configured.	-

Node usage example scenario:

---

Key By / Organize List by Key

Description & Use Case: Reorganizes a list of records into a dictionary record organized by a chosen field value. Use this to quickly index users by their email addresses.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
List	Input	List	The list of records to group.	Required
Key Field	Input	Text	The field to group by. Overrides settings.	Optional
Key Field	Settings	Text	The field to group by.	-
Value Field	Settings	Text	Optionally choose a field to serve as the value.	-
Organized Record	Output	Record Details	The resulting organized dictionary record.	-

Node usage example scenario:

---

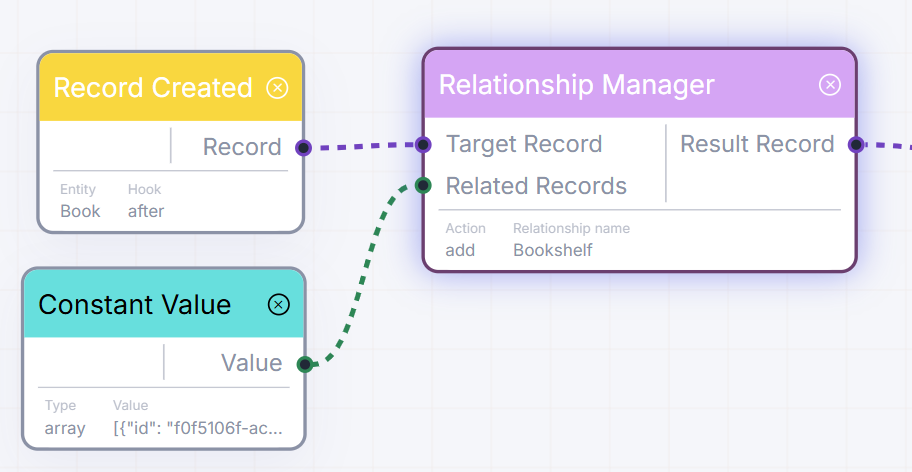

Manage Relationships

Description & Use Case: Links or unlinks related items (e.g. linking several products to a specific store category).

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Main Record	Input	Record Details	The parent record to update.	Required
Related Records	Input	List	List of child records to link/unlink.	Required
Action	Settings	Text (Enum)	Choose: "add" (Link) or "remove" (Unlink).	Required
Relationship	Settings	Text	The name of the relationship category.	Required
Updated Record	Output	Record Details	The parent record details after link changes.	-

Node usage example scenario:

---

Decisions & Routing (Logical Operators)

Use these nodes to split flows, check parameters, or route runs along different paths.

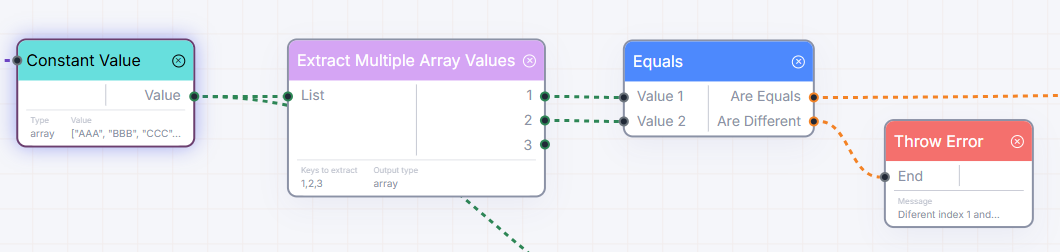

Equal / Check Equality

Description & Use Case: Compares two values and splits the flow depending on whether they match. Use this to check if a user inputted a correct answer, or if two codes match.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Value 1	Input	Any	First value.	Required
Value 2	Input	Any	Second value.	Required
Match Mode	Settings	Text (Enum)	Choose "valueAndType" (Strict) or "OnlyValue" (Loose).	"OnlyValue"
If Equal	Output	Yes/No	Fires and routes flow if both inputs match.	-
If Not Equal	Output	Yes/No	Fires and routes flow if inputs do not match.	-

Node usage example scenario:

---

Empty / Check If Empty

Description & Use Case: Checks if an input is missing or empty (e.g. blank text). Use this to check if a customer failed to supply a phone number, routing the flow to an alert.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Value	Input	Any	The value to check.	Required
If Empty	Output	Yes/No	Fires if empty.	-
If Not Empty	Output	Yes/No	Fires if contains data.	-

Node usage example scenario:

---

Switch / Multi-Path Switch

Description & Use Case: Evaluates an input and routes the flow through the matching path out of several choices. Use this to route support tickets down different departments depending on priority (High -> Manager, Low -> Queue).

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Input	Input	Any	The value to match.	Required
Data Type	Settings	Text (Enum)	Expected data type (Text, Number, Date, Record, Yes/No).	"string"
Match Field	Settings	Text	Optional field to pull if input is a record.	-
Cases	Settings	List	List of cases to match (e.g. “Low”, “Medium”, “High”).	Required
Default	Output	Yes/No	Runs if the input matches none of the cases.	-
Dynamic Outputs	Output	Yes/No	A separate output port appears for each case. Only the matching case fires.	-

Node usage example scenario:

---

Comparison / Value Comparison

Description & Use Case: Compares two values (numbers, dates, or alphabetical text) and splits the flow. Use this to check if a customer is over 18 years old, or if a date is older than today.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Value 1	Input	Any	First comparator.	Required
Value 2	Input	Any	Second comparator.	Required
Data Type	Settings	Text (Enum)	Compare as: "number", "date", or "string".	Required
Forward Option	Settings	Text (Enum)	Choose which value to send forward: "value1" or "value2".	Required
Equals	Output	Any	Fires if equal.	-
Greater Than	Output	Any	Fires if Value 1 > Value 2.	-
Lower Than	Output	Any	Fires if Value 1 < Value 2.	-
Greater/Equal	Output	Any	Fires if Value 1 >= Value 2.	-
Lower/Equal	Output	Any	Fires if Value 1 <= Value 2.	-
Contains	Output	Any	Fires if Value 1 contains Value 2.	-

Node usage example scenario:

---

Stopping the Flow (Life Cycle)

These nodes control how a workflow pathway ends.

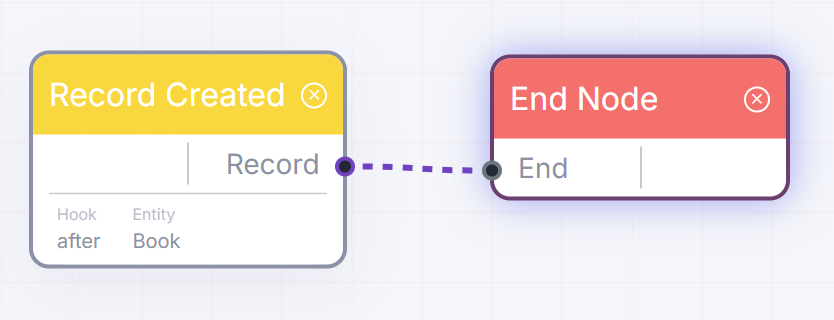

End / Finish Success

Description & Use Case: Marks the successful completion of a pathway in your workflow. Any value linked here is collected as the final output of the entire run.

Details Table:

Name	Type	Required	Description	Default
Result	Input	Any	Value to return as the final result of the workflow.	Required

Node usage example scenario:

---

Throw / Finish Error

Description & Use Case: Halts the workflow immediately, reporting an error and canceling/rolling back any database changes made in this run. Use this to block a process if security checks fail.

Details Table:

Name	Type	Required	Description	Default
Stop Trigger	Input	Any	Pathway connection to end the flow.	Required
Error Message	Settings	Text	Custom message describing the failure.	Required

Node usage example scenario:

---

Notifications, HTTP Requests, & AI Helpers

These nodes handle communications, integrations with external software, and artificial intelligence queries.

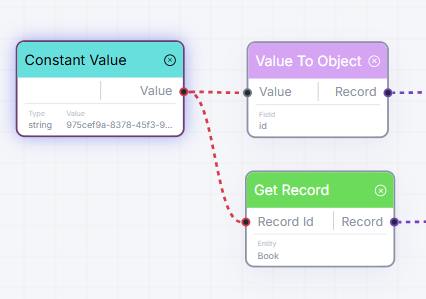

Constant Value

Description & Use Case: Outputs a fixed, pre-set value that never changes (like a default sales tax multiplier or a default support email address).

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Type	Settings	Text (Enum)	Data type to cast to (Text, Number, Date, Record, Yes/No, List).	"string"
Value	Settings	Any	The raw value.	Required
Constant Value	Output	Any	The configured constant value.	-

Node usage example scenario:

---

Outbound Web Request

Description & Use Case: Sends an HTTP API request to external servers or online web services. Use this to send order receipts to Slack, or retrieve stock updates from a vendor’s inventory API.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
JSON Body	Input	Record Details	Data payload to send.	Optional
Query Params	Input	Record Details	URL query parameters.	Optional
URL	Settings	Text	Target web API address.	"/some-external-url"
HTTP Method	Settings	Text (Enum)	Choose: "GET", "POST", "PUT", "DELETE", or "PATCH".	"POST"
Headers	Settings	List	Custom header key-value items.	-
Response	Output	Record Details	The parsed response data returned by the server.	-
Failed?	Output	Yes/No	Outputs “Yes” if the request timed out or returned an error.	-

Node usage example scenario:

---

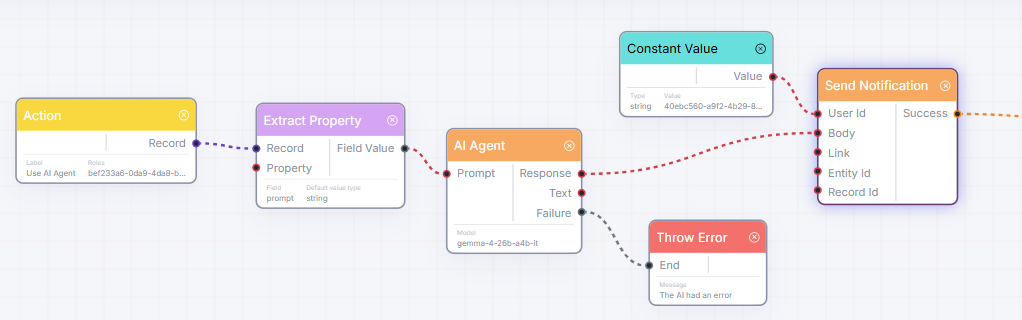

Send In-App Notification

Description & Use Case: Sends an alert directly to a user in their application notification center. Use this to notify a clerk that their request was approved.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
User ID	Input	Text	The user to notify. Defaults to the flow runner.	Optional
Message Body	Input	Text	The text message content.	Required
Target Link	Input	Text	Optional screen path to open when clicked.	Optional
Entity ID	Input	Text	Related database category ID.	Optional
Record ID	Input	Text	Related database record ID.	Optional
Sent Success?	Output	Yes/No	Returns “Yes” if the notification was queued successfully.	-

Node usage example scenario:

---

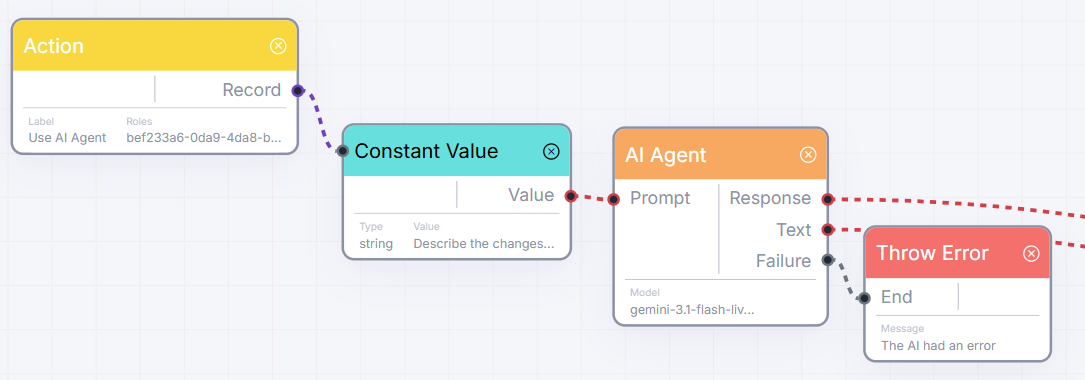

AI Agent

Description & Use Case: Sends a prompt to an AI model (like Google Gemini) and retrieves a structured or plain text response. Use this to automatically summarize customer logs, categorize support tickets, or extract dates from text.

Details Table:

Name	Type	Required	Description	Default
Trigger	Input	Any	Conditional gate.	Optional
Prompt	Input	Text	The prompt instruction.	Required
System Rules	Settings	Text	AI persona constraints (e.g. “Draft short answers”).	Required
Stop on Failure	Settings	Yes/No	Halts entire flow if AI call fails.	false
AI Outputs	Settings	List	Define fields you want the AI to extract and output.	-
Advanced	Settings	Yes/No	Enables detailed model tuning settings.	false
Provider	Settings	Text (Enum)	Choose: "google" or "nvidia".	"google"
Model ID	Settings	Text	Specific model version to use.	-
API Token	Settings	Text	Custom authorization API key.	-
Max Tokens	Settings	Number	Maximum response size.	1024
Temperature	Settings	Number	Creativity slider (0.0 to 2.0).	0.15
Max Retries	Settings	Number	Retries on API rate limits.	2
Retry Delay	Settings	Number	Delay between retries in milliseconds.	50
Enforce Schema	Settings	Yes/No	Force output validation with JSON Schema.	false
JSON Schema	Settings	Text	Custom response schema structure.	-
Plain Text	Output	Text	The raw text response.	-
Failed?	Output	Any	Error details if the call fails.	-
Dynamic Outputs	Output	Any	Generates one output port for each defined field in AI Outputs.	-

Node usage example scenario:

---

Best Practices & Tips

1. Use the Conditional “Trigger” Port: Instead of adding multiple branching decision nodes, connect decisions directly to the Trigger port at the top of your nodes. If the connected decision is blank or “No”, the node is safely skipped along with all steps following it.
2. Database Transactions (Safety Rollbacks): If your workflow hits an Error node or encounters a serious issue midway, the system automatically rolls back all database changes made during that run, keeping your data clean.
3. Always Connect Loop Iterators: When using ForEach to loop, always make sure to connect the final node of your internal flow back to the loop’s Next Step input. This tells the loop that it is safe to proceed to the next item.
